Whether the removal of non-functional pads has a bad impact

2018-12-06 11:55Writer: qyadminReading:
       High-speed indicators is a hot subject that can not be prevented by communication industries. Using the increase amount of transmitted information and tranny velocity rate, high-speed indicators have steadily become significant. High-speed PCB is a launching table of high-speed indicators and its materials selection, production technology and routing design all impact quality of high-speed indicators. nonfunctional Pad, aka NFP, is a technical method to produce high-speed PCB while insertion reduction is one of the most crucial parameters indicating transmission quality. To eliminate or even to keep NFP has been an inevitable conversation topic between engineers and manufacturers. This short article analyzes impact of NFP on insertion lack of high-speed indicators from the perspective of production procedure within an experimental method, and manuals you to the answer of whether to eliminate or even to keep unused pads.

  Introduction of NFP


  nonfunctional pads are pads on external or internal layers that aren't linked to any energetic conductive patterns on the coating. NFP does not have any impact on any electric signal transmitting but it is with the capacity of conditioning copper adhesion on opening wall structure. NFP can be shown in Determine 1 below.



non-functional pads,Vias of high-speed PCB

  Adding NFP means providing metallic attachment factors prior to PTH (Plated Through Opening) copper, so plenty of manufacturers have a tendency to add NFP to be able to ensure better aftereffect of PTH copper along the way of multi-layer PCB production .

 Test Design


  With this test, the same CCL (Copper Clad Laminate) materials is chosen. All PCBs contain 20 layers among which routing are applied on the 3rd and eighteenth level. Insertion reduction can be in comparison between adding NFP (Plan 1) and eliminating NFP (Structure 2) to be able to ensure whether NFP has impact on transmission quality. Because many uncertain elements do can be found along the way of PCB production, the key guidelines need to be inspected aside from insertion reduction in order to assure no other impact elements are combined into manufacturing.

 Influencing Elements Inspection


  • Impedance consistency inspection

  In the transmission reduction test, transmission reflection is commonly generated because of to inconsistent impedance, that may finally impact test consequence of insertion reduction. Because of this, correctness of insertion reduction test directly depends upon the grade of impedance consistency.   Predicated on above desk, it could be seen that impedance difference falls within 5% between two techniques with a summary that impact of feature impedance on reduction test can be neglected.

  • Elements influencing insertion reduction inspection

  Insertion loss is made up by dielectric reduction and conductor reduction. As the same materials and light painting images are applied in two strategies inspected in this test, dielectric reduction and conductor reduction only derive from PCB production. Next, both items will be respectively examined to be able to ensure noninfluence on PCB production.

  a. Dielectric reduction inspection

  Software of adhesive bonding sheet in multi-layer stacking will produce some resin economic downturn and various amount of resin economic downturn leads to variations between dielectric reduction. In conditions of doubt of resin economic downturn on adhesive bonding sheet, x-section evaluation needs to be applied after stacking up to be able to totally eliminate impact due to difference in conditions of resin economic downturn amount.

  Through the evaluation, it could be summarized that primary thickness of top coating and lower level of both techniques is respectively 139.8μm and 135.2μm. After stacking up, thickness of adhesive bonding sheet is respectively 257.4μm and 251.9μm. The utmost thickness difference falls within 6μm, catering to production tolerance necessity and insertion reduction won't be affected because of the dielectric loss.

  b. Conductor reduction inspection

  Conductor reduction, then, is related to length of lines, surface roughness and lateral erosion during PCB production process in test circuit. In both schemes of the test, circuit design is the same with the impact of line size eliminated. Brown impact, focus of etching solution and drinking water pressure all have impact to surface roughness. In order to avoid these complicated elements, circuit consistency is straight judged from the ultimate result.

  Through the test, transmission collection width is assessed to be respectively 168μm and 166μm with the use of System 1 and Plan 2 and tranny line elevation 18.3μm and 18.9μm. Surface roughness both stay at 2.5μm. All of the data indicate that conductor reduction is actually similar in conditions of transmission range production so that impact of conductor reduction on insertion reduction can be eliminated.


  NFP Impact Analysis

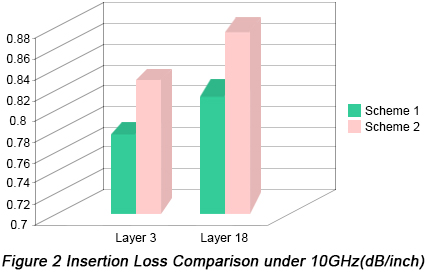

  Beginning with era way to obtain dielectric reduction and conductor reduction, coupled with era theory of insertion reduction, some inspections are applied in conditions of PCB production consistency to be able to ensure only 1 adjustable, which is NFP, occurs in both schemes. In accordance to FD (Frequency Domain name) method in IPC-TM650-2.5.5.12, Structure 1 and System 2 are tested with the effect displayed in Physique 2 below.



Insertion Loss Assessment under 10GHz | PCBCart

  Due to the only adjustable, NFP, impact of NFP on transmission insertion reduction can be around judged. Plan 1 eliminates NFP while Structure 2 maintains NFP. It could be seen from the determine above that either coating 03 or level 18, insertion reduction test lead to System 1 is all smaller than that of Plan 2, which shows that adding NFP will improve signal insertion reduction.

  Predicated on this test, insertion reduction difference maintains at around 9% between two techniques. Number 3 is an initial grading on the famous communication terminal materials.



non-functional pads,Vias of high-speed PCB

  Predicated on Shape 3, it could be seen that hardly any insertion reduction difference occurs between all ranks of materials. If the insertion reduction inspected in this test just falls within the group of threshold, materials quality will be reduced by NFP, that will greatly influence the complete production series from materials manufacturer to get rid of.

  Conclusion


  When involves high-speed PCBs, multi-layer PCBs are inevitable the development pattern and through via production is the first problem. NFP features great improvement to PTH copper along the way of production PCB via wall structure and plays a highly effective role in preventing via copper from falling and working with quality problems such as via wall structure crack. Removing other influencing elements, the adjustable of NFP is known as in this specific article and impact of NFP on insertion reduction is analyzed such that it is with the capacity of providing some mention of material producer, PCB producer and terminal producer in conditions of high-speed PCB design.
