Three factors that lead to Blind Via for Empty Cave in PCB F

2018-12-05 11:36Writer: qyadminReading:
       Lately, with the fast development of digital products regarding digital video and digital mobile marketing communications, the development in this kind of products is pressing PCBs towards development in conditions of lightness, thinness, smaller, multiple functions and high density and reliability. The limited routing space on PCBs leads to the close restricting between vias, cables, cables and vias and the advent of via copper filling create, making the density of PCBs improve by around 10% to 30%. Determine 1 shows a HDI (High Density Interconnection) table predicated on via copper filling.



Blind Via for Empty Cave , PCB Filling Copper Plating


  Since via design is with the capacity of conserving routing space to a great degree and blind vias filled up with copper feature high reliability, blind vias with copper filling plating have a great deal of advantages. Furthermore, this art is not at all hard, cost conserving and holds simplified process. Because of those merits mentioned previously, blind via with copper filling plating will be massively applied in HDI PCB fabrication, thought to be an upcoming pattern in neuro-scientific PCB. However, some problems still happen with the use of blind via with copper filling plating including extremely large dimple, leakage and vacant cave inside vias. Like a headaches for PCB manufacturers, plenty of complicated elements donate to bare cave inside vias. This article will discuss the complexities for clear cave inside vias and produce corresponding measures to cope with them to be able to resolve the failing and boost the produce of products.

 Failing Analysis


  A whole lot of elements cause vacant cave in blind vias with copper filling plating and each component needs to be examined from the perspectives of characteristics and developing system so that impact will be optimized.

  • Bubbles in blind vias

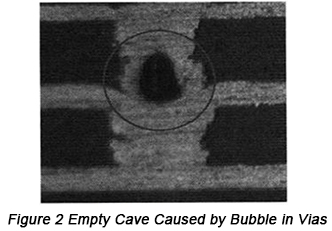

  The resources of bubbles are based on external attracting and self response. Generally, flash plating must be prepared on PCBs prior to copper filling plating to be able to strengthen via conductivity and become convenient for storage space. Serious via oxidation is commonly caused if planks stay subjected to the air for a long period, so dwell time shouldn't be too much time. Put yet another way, bad preprocessing will business lead to unelimination of bubbles in vias and oxidation plane, greatly increasing the pace of bare cave in blind vias, which is indicated in Physique 2.

  Blind Via for Empty Cave , PCB Filling Copper Plating


  The advent of bubbles also is based on anodic response in copper container and the response H2O → 1/2O2 + 2e- + 2H+ will need put on anode when insoluble anode is applied. Predicated on this response, it could be concluded that o2 will be escaped from insoluble anode, resulting in high additive compensation and escalation of life time of anode or even passivation of anode and PCB defect. Therefore, to resolve this issue, moderate ferrous sulfate is added into plating solution to remove the air escaping from anode when anode response follows both of these reactions: Fe2+ → Fe3+ + electronic-, Fe3+ + Cu → Fe2+ + electronic-.

  To make sure easy implementation of response, Cu needs to be constantly added into plating solution, generally cupric oxide powder. Concurrently, to lessen the parasitic response on cathode, higher requirements need to be set in conditions of flowing in plating solution and cathode materials needs to be improved.

  This sort of failing caused by clear cave often takes place in the bottom of blind vias, showing symmetrical and regular designs. For the improvement of the problem, measures can be executed from the next aspects:

  a. Dwell time and storage space environment must be well managed prior to copper filling plating. Commonly, for planks without flash plating, copper filling plating needs to be completed in 4 hours while for planks with flash plating completed it needs to be completed in 12 hours. Planks should be stored a long way away from acidity environment and when possible, you need to store them in rooms with ac units with the capacity of controlling temperature and humidity of the area.

  b. Preprocessing impact should be improved and necessary bubble removal devices should be added. Preprocessing is incredibly significant since preprocessing copper filling plating is straight related to filling effect. To make sure preprocessing effect, acidity degreasing agent is preferred to be found and the quantity of drinking water circulation is suitably increased. Furthermore, in winter when drinking water temperature is relatively low (significantly less than 15°C), just a little sulphuric acidity should be added for drinking water washing following the software of degreasing or heating system devices can be put into ensure the cleaning impact. Furthermore, vibration and air poppet valve can be assembled on preprocessing container in order to get rid of bubbles in vias.

  c. Collection of anode materials of copper container and control on current guidelines. Based on the 2nd way to obtain bubbles, it is rather important to choose suitable anode materials of copper container. Anode materials should be ideal for the improvement of anode performance and reducing of additive usage. When current guidelines are too big, reactions on anode will be accelerated so the quantity of bubbles will be increased. Under such condition, bubbles will enter blind vias as they movement out and can not be eliminated from vias. Therefore, in addition to the collection of anode materials and control of current guidelines, anode handbag or protection coating must be put into the exterior of anode net to be able to avoid bubbles produced by anode straight getting into plating solution.

  • Imbalance of additive components

  The the different parts of copper filling plating solution include copper sulfate, sulphuric acidity, chloride ion and additive and filling impact inside blind vias is applied through the system of action between components in plating solution. Additives play their own functions along the way of plating mutually and independently. Brightening agent is important in absorbing characteristics or electric features on electrode user interface and changing sediments form and property to get the required potential plating plane. Delivery agent is with the capacity of pressing brightening agent to go ahead each distribution of cathode dimple. However, it will not work unless chloride ions help. Delivery agent is accountable for making uneven distribution become even because of its features of leveling capability and even plating capability. Leveling agent is commonly assimilated by positions with relatively strong electronegativity since it features strong electropositivity in acidity solution. Then, it creates copper ions difficult to deposit with no impact of copper deposit in density area with low level consequently of competition with copper ions with positive electricity.

  It's quite important to regulate components and amount of additives and the failing of element control leads to bad copper filling of blind vias or vacant cave, as is shown in Number 3.



Blind Via for Empty Cave , PCB Filling Copper Plating

  The quality to the failing of bare cave triggered by this reason is based on the control in conditions of additive components and additive amount, including:

  a. Additive stream amount should be regularly calibrated to ensure accurate circulation amount so that effective control can be acquired.

  b. Carbon treatment should be regularly completed to solution predicated on the health of plating solution pollution.

  c. Agent components are examined regularly and additive content and plating impact should be approximated by Hull Cellular test to verify if the plating impact is within the standard category and related adjustment needs to be manufactured in time.

  • Reason behind foreign matter

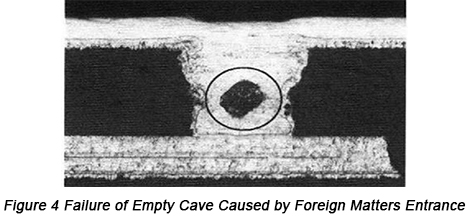

  The surroundings of copper filling plating treatment lines, applied materials and daily creation activities will all business lead to pollutions with different pollution levels. All types of foreign issues or contaminants are inevitable. For micro international matters, they can not be observed by our eye and it's really extremely difficult to remove them. After they enter blind vias, clear cave is commonly made, as is shown in Shape 4 below.



Blind Via for Empty Cave , PCB Filling Copper Plating

  Because of this vacant cave failing in blind vias, the reason for this is easy found. Through SEM, the form of bare cave in blind vias can be viewed. Therefore, the steps to discover source of international matters include:

  a. External international issues are prevented from getting into plating solution and enclosed method line is recommended.

  b. Estimation whether applied materials or agent purity gets to the typical and whether it fulfills the necessity of PCB production.

  c. Periodic filtering and purity should be applied on plating agent to guarantee the vividness and clear color.


 Conclusion

  Naturally, the complexities for clear cave failing in blind vias are more than outlined and there are a great number of causes for the including materials classification of dielectric constant, thickness, blind via type and current guidelines of electric plating.

  To conclude, the main element is to discover the reason behind vacant cave failing in blind vias met with bare via failure. At the same time, it's wise to observe clear cave failure form and summarize experience, to find regarding rules and also to apply research with all types of evaluation methods. Furthermore, predicated on the system of vacant cave failure, medical operation recommendations should be enacted and improvement and avoidance guidelines should be purely completed so that problems can be resolved to constantly raise the produce and reliability of products.
