How to design perfect LED PCB

2018-12-07 11:48Writer: qyadminReading:

  LED PCB Design Techniques


     • Pitch


  PCBs requested LED display, also known as LED PCBs, are highly symmetrical in external design. With regards to copper coating of LED circuit planks, one part is fully protected with pads that are organized in matrix, called LED part. In most cases, 4 pads are thought to be one unit which an LED is assembled. Components are assembled on the other hand of copper level, to create driver side.

  Small LED pitch is, the better screen impact will be therefore will be its quality. Until now, the pitch range in tranquility with current SMT (Surface Attach Technology) is from 0.45mm to at least one 1.6mm while LED pitch is from 1.0mm to 4.0mm. LED PCB design mainly depends upon specs of LED pads. The determine below indicates assessment between SMT pitch and LED pitch.



How to design perfect LED PCB




  • Laser beam Drilling Blind Vias

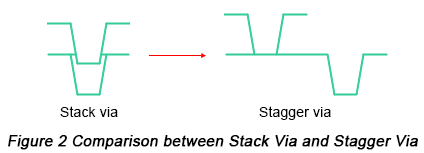

  For stack boards that contains 2 layers at least, electric soldering blind via filling technique is necessary when stack via was created as laser beam drilling ones. Eventually, process complexity and production cost will rise. Thus, as it pertains to stack planks with an increase of than 2 layers, laserlight drilling blind vias are recommended to be designed as stagger vias rather than stack vias. Laserlight drilling stack vias should make an effort to be avoided.




How to design perfect LED PCB





  • LED Setting up Holes

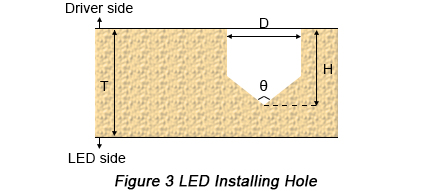

  LED installing openings are non-penetrating openings with recommended diameters tolerance at ±0.05mm; depth (H) should be only the worthiness of table thickness (T) minus 0.5mm with formula: H ≤ T - 0.5mm. Depth tolerance should become more than ±0.2mm as the conventional drilling position (θ) is 130°. Determine 3 shows guidelines of the LED installing opening.




How to design perfect LED PCB




  If copperless area around non-penetrating (NP) openings features inadequate distance, NP openings will possibly be plated thru-holes or copper will be uncovered at the margin of vias. With regards to NP openings needing solder mask starting pad to be remaining on the top of vias, copperless splitting up area bigger than 0.15mm should be designed between NP vias and pads. When NP vias require no pads, the complete pad can be cancelled.

  • Distance between Pad and Outer Margins



  Sufficient space needs to be maintained between margin pads and external margins. If space is inadequate, issues like milling detects & copper exposure will happen.

  • Solder Mask Starting Pad



  Copper define is recommended on pads, which is with the capacity of effectively preventing solder mask peeling. When SMT margin pitch is rightly fit for production, SM define can be viewed as. Because of this, pads will discuss higher level of conformity.




 8 Solutions to Overcome LED PCB Defects

  • Circuit Scratch



  Pads in high density privately of LEDs business lead slight scratch to be always a deadly defect. It's recommended that relatively high level of copper foil should be employed so that open up and brief circuit scrap will be definitely reduced triggered due to scrape.

  Combined with the features of bigger windows techniques, pads in high density business lead to recessive defects of copper exposure beside circuit. This sort of defects is rarely noticed until SMT treatment has been completed. This issue can be partially resolved by relatively shrinking collection pitch to boost pitch between range and pad.

  • Solder Mask Essential oil Peeling



  Dark solder mask lays high necessity to exposure energy and even somewhat thicker solder mask essential oil can easily business lead to imperfect exposure of solder mask essential oil in the bottom coating, finally leading to solder mask essential oil peeling. Supplementary exposure can be employed to effectively solve this issue. Obviously, solder mask consignment capacity will be challenged as well.

  • Solder Mask Essential oil Color Inconformity

  Distinct with most imprinted circuit planks, LED side of the LED circuit panel features high necessity to color inconformity. As yet, there are no judging requirements accepted by the general public which is extremely difficult to guage it in quantifications. Essential oil color conformity results from a big quantity of elements. Furthermore, it depends upon stricter production conditions than regular circuit planks. Therefore, essential oil color conformity may be accomplished by exploring the best option control guidelines and methods, which demands rigorous manufacturing systems and years' fabrication experience in this industry.

  • Bad Table Outline



  For smaller planks without margins, LED setting up holes business lead to bad marking up impact and marking-up screws have a tendency to be loose and displacement, leading to defects such as summarize displacement and plank angle bulge. Appropriate process assistance margins can be chosen as a noticable difference method.


    • Board Position Defects

  With regards to circuit planks with relatively high thickness, delicate aspect angles on LED circuit table should receive carefulness from operators. To avoid defects along the way of transportation, it's essential to add foundation plate for safety as a safety measure. Plus, size of the bottom plate should be considered a little bigger than that of solitary margins.

   • Warpage



  LED side of the LED circuit panel contains a huge amount of pads in high density while large prevents of copper are organized on the drivers side. This sort of asymmetrical stress is undoubtedly the primary reason adding to plank warpage. To be able to maintain affordable flatness, warpage of LED table needs to be rigorously managed within under 0.5%.

  • Pad Outline



  Pad set up in matrix type easily business lead to visible inspector's visual exhaustion, which causes a higher omission ratio. Nevertheless, describe inspector features problems such for as long inspection time and low complete rate. Therefore, those issues can not be effectively reduced unless attempts are created on method control.

  • Degrading Functions

   Distinctions between other styles of PCBs and LED PCBs, dark solder mask and pads in high density produce difficulties to mistake analysis of published circuit panel assembly (PCBA). When bad functions take place, PCBA only explains them and neglect to indicate which specific pad. This issue is usually exhibited as failing of the complete row of LEDs. Met with such concern, specific network dot should be decided after plenty of efforts. The perfect solution to make it true should rely on regarding components demolition and solder mask essential oil removal.
