What is a fiducial on a PCB?


      As pick-and-place machines. become more precise, some assembly shops are doing away with local fiducials. Why take up real estate with non-functional markings when it's not necessary? Of course, it's never that black and white. Deciding whether local fiducials are necessary depends on a few different factors. Here they are.

      More than anything, the decision of whether to use local fiducials depends on board size. If the board is small enough, globals can act as locals. as the global fiducials can situate a smaller surface area. But as board sizes increase (anything over 8 x 8, give or take). you’ll need help from local fids to achieve perfect placement.

      Components with lower pitches and pin counts. may not need local fiducials for placement. But the finer a component's pitch and the higher its pin count. the more necessary it'll be to use local fiducials for added precision. Generally speaking, any component with a pitch under 1.0mm will need local fiducials. BGA's with pitches under 0.5mm - 0.8mm generally need local fiducials.

      The use of local fiducials depends on the type of machines. It’s always important to discuss pick-and-place machine design. and specs before deciding whether it’s necessary to include local fiducials. And , even if local fiducials aren’t necessary to place a fine pitch component. having them designed into the board. could come in handy for repair and rework, not to mention peace of mind.

      Fiducials (or fiducial marks) are target registration marks printed . on the top of the copper layer of a PCB. In genera. they provide common measurable points for all steps in the assembly process. allowing all automated assembly equipment to locate the circuit pattern. There are two types of fiducials: global and local.

      Global fiducials used to locate the position of all features on an individual PCB. and they’re a must for a pick-and-place machine to situate a board to the CAD data programmed into the machine. Local fiducials used to locate the positions of fine pitch components such as QFPs and BGAs. which need precise placement.


   As an important carrier of all kinds of electronic components, printed circuit boards. provide excellent mechanical support for components. and connect those components through copper foil lines with different thickness. and soldering pads with different sizes according to logical circuits. to put in place the electric performance of products. Since most electronic products  manufactured by SMT, the quality of PCB design is. both  related with the normal operation of electric performance. and with the effective procedure of PCB assembly manufacturing. With the influence of Fiducial Mark on printing quality. this article discusses the important impact of PCB manufacturability. in the field of electronic product production in point-to-area method.

     In PCB design, a fiducial marker is a rounded shape of copper. that acts as a reference point for pick and place assembly machines. Fiducial pcb markers help machines recognize the orientation of the PCB. and its surface mount components with packages. that have tiny pitches like Quad Flat Package (QFP). Ball Grid Arrays (BGAs) or Quad Flat No-Lead (QFN).

      There are two types of fiducial markers.  found in printed circuit board designs: global fiducial markers. and local fiducial markers. Global fiducial markers are a copper reference placed on the edge of the PCB that. allows the machine to determine the orientation of the board about the X-Y axis. Placement machines also use the fiducial marker to compensate. for any skew when the PCB  clamped.

     Local fiducial markers are copper markers. that placed outside of the corner of aquad packaged surface mount component. It used by assembly machines to locate the footprint of a component.. and reduces errors in component placement. This is especially important when you have fine pitched. and large quad packaged components in your design.

      Fiducial marks used for position. referencing by imaging systems when components are being placed.
They consist of a small filled circle of copper and a clear area from the solder resist layer. and usually a smallest of two placed in opposite corners of the board. In some situations with high density areas of small surface mount components. more fiducial marks required local to that area.

      There is not an official recommendation on the size. number or positioning of fiducial marks. so it recommended that you discuss with your manufacturer for their recommendations.

      Various suggestions made on the internet that the solid copper area should be 1 to 2mm diameter. and the clearance in the solder mask twice this, e.g. 1.5mm diameter copper and a 3mm diameter clearance in the resist.

      Pads cannot used as they do not have the required control over solder mask and paste mask. but it is quite simple to create the fiducial on your PCB layout as follows.

fiducial pcb advantages


      A fiducial is an alignment mark for surface mount assembly machines. High volume assembly requires them to ensure accurate registration and parts placement. Low volume assembly, like we do here at Screaming Circuits, doesn't  need them. (Some low volume shops do, so ask before assuming). Even if they aren't required, they still help and are always a pretty decent idea.

      The basic idea is to create a non-reversal pattern with two or three fiducial marks on your board or panel. As you can see in the image above, the designer placed three fiducials. around the board in a non-reversible pattern. Note that to protect the confidentiality of the board design. e circuit detail with this convenient robot head.

      specific construction of a fiducial. there are two things that are the most important: contrast, and accuracy of position.

      Contrast comes from it being bare copper — make it 1 to 2 mm in diameter. Don't cover it with solder mask. Make the mask opening 2 - 5 mm larger than the copper.

      The image on the right shows closeup detail. This particular fiducial mark uses a square cutout in the silk screen. Most use a round cutout, but the shape isn't all that important. The copper pad should be round, though.

       Making it out of copper gives the positioning accuracy. I've asked why silk screen markings aren't acceptable. Silk screen isn't always registered , and is thus won't ensure accurate alignment. Don't use silk screen as a fudicial or positioning mark of any kind.

Again, they're generally required for high-volume manufacturing. We don't need them for low-volume, but some assembly houses do. Even when not required, they're still a good idea.

What are fiducial marks used for?


      Fiducial marks come into play when you have a PC board assembled by automated pick. and place machinery robots that put the components on your board. Automated assembly machinery requires incredible precision to  place a 0201 size resistor. or 2mm x 2mm chip scale micro BGA. The machines have to know exactly where your board is.

      A fiducial is an alignment mark for surface mount assembly machines. The marks ensure that your board oriented in the correct direction. and aligned as close to perfect as possible. Assembly machines use cameras to locate fiducial marks. and then adjust component placement based on the exact position of the board. The whole process requires more than one fiducial mark in a non-reversible pattern.

      Take a look at the following two images. In both examples, one with three marks and one with two. it will be clear to the machine if the boards are upside down or sideways. The three mark pattern recommended by the IPC, the keeper of industry standards. The second pattern, though it only has two marks. and thus cannot reversed, seen often enough and also works.




     Functions of Fiducial Mark


      In the process of volume production of digital products. with the method of SMT devices, each batch of PCBs. for assembly has to conform to the requirements of correct board. and accurate position. Manual operation without special design can lead to low efficiency and accuracy. which will cause the defects of products.

      The accurate positions of table. can be generally ensured through positioning holes or Fiducial Marks. Since the design of placement holes relies on brand. and model number of PCB assembly equipment. placing holes are not placed on each PCB while Fiducial Tag is the necessity of each PCB.

      Fiducial Mark is a special optical setting symbol. During manufacturing, assembly devices irradiate on Fiducial with image coordinates generated. which are then compared with the preset standard data in the system. If coordinates are compatible with standard data or the differences are. within allowed category, the machine will judge the correctness of PCBs. that will sent to the inside of machines for procedures. including printing, mounting and soldering. Otherwise, PCBs will judged with incorrectness and panel sending. will paused with alarm transmitted.

      Thus, Fiducial Mark plays a significant role in correctness of electronic products guarantee. Besides, many PCB designers sometimes fail to make. their designed PCBs not recognized by assembly devices. so that the next normal production can't implemented. It's necessary to be aware of certain requirements . and regulations of Fiducial State PCB design.


     Requirements of Fiducial Mark Design


 • Composition of Fiducial Mark and design parameters

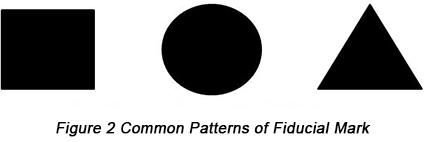

      An integrated Fiducial Mark contains mark and clearance, which displayed in Figure 1. The general patterns of Fiducial Tag shown in Determine 2.






Common pattern of Fiducial Mark | PCBCart


       Generally speaking, the solid circle with a diameter of 1mm (±0.2mm) is the optimal choice for Fiducial. that made of bare copper, tin plating or nickel plating. protected by transparent inoxidizable coating. To make Fiducial Marks identified by assembly devices, the color of Fiducial Signifies. should be different from that of surrounding area. Besides, clearance with the size 1mm larger should be set aside Fiducial Represents. Generally, the radius of clearance is no less than 2R (R refers to the radius of Fiducial Mark). and when the radius of clearance is equal to 3R, the recognition effect of devices is the best.


• Routing requirements of Fiducial Marks


      Based on the theory that 3 non-linear points determine a plane. 3 Fiducial Marks should positioned with a design of "L" on the PCB as shown in Physique 3. If the space of the plank limited so that 3 Fiducial can't placed on it. at least a pair of Fiducial Marks should positioned on the board along diagonal line, like Figure 4.

     Fiducial Mark on Printed Circuit Boards | PCBCart
       Fiducial Marks along diagonal line should not placed completely . Or else, error can't found out by devices when planks are not correct so that defects. will come up with inaccurate table or incorrect installation. For components with some special requirements and accurate positioning. local Fiducial can designed to increase the precision of mounting.

      Also, the distance between Fiducial Signifies and PCB edge. has to be bigger than the smallest distance need clamped by SMT devices. to be within PCB instead of at the panel edge and to meet the clearance need of the minimal Fiducial Mark. Besides, to increase the recognition aftereffect of printing device. and mounting device, other routing, silkscreen. soldering pad or V-Cut shouldn't be set within Fiducial Mark clearance. and the length between clearance. and other metal factors (test point for example) with similar types needs to be 5.0mm at least.


  • Manufacturing requirements of Fiducial Marks


      Along the way of bare plank PCB manufacturing, the scale change from Fiducial Marks has to be no more than 25μm. If the size change is too big, the data deviation acquired. by computer image will exceed the change category. of standard values so that both board loader. and alarm will influenced and the production efficiency will  downsized.

      The surface flatness of Fiducial Represents should  controlled within 15μm. and they have to share the same inner background. Otherwise, the low degree of flatness will influence the recognition effect of devices. or devices even wouldn't work.

      All the Fiducial Marks on the PCBs with the same table number have to be the same size and shape. It suggested that all the Fiducial Signifies. marked as solid circles with diameter of 1mm. The best performance can obtained. when high contrast comes up between Fiducial Represents and substrate material of PCBs. Besides, Fiducial Marks should isolated with copper foil on copper foil boards.

      Case Analysis

      To provide an easy-to-understand explanation. a PCB prototype with the scale 50mmx30mm drawn by Protel software with. its Fiducial Marks positioned along diagonal line. as shown in Number 5.
Fiducial Mark on Printed Circuit Boards | PCBCart


       For the Fiducial Marks design in Figure 5, the device is capable of recognizing. and comparing parameters by camera. with the correct panel loading direction to. ensure the correct printing work done by printer.


     But, once the plank loading direction is incorrect. such as the situation shown in Figure 6 in which the prototype  overturned 180°.  device will still stick to the correctness of board loading path . and positions of the present PCB. Under this condition, normal printing work will applied according to established procedure.

   Fiducial Mark on Printed Circuit Boards | PCBCart


      This will reduce the manufacturing efficiency. What's worse, since the efficiency of PCBA is quite high. a lot of problematic PCBs will  produced before the pause of manufacturing. after advent of defected PCBs. In this circumstance. production time and efficiency will decreased and product quality will be even affected.

     Aside from the placement of Fiducial Signifies that they should avoid complete symmetry. the distance between Fiducial Tag edge and table edge should also noticed. The distance should be set in the range from 3.5mm to 5mm. Furthermore, the tag of Fiducial Represents needs to be medium. neither too large nor too small. For circle pattern, the diameter should e managed in the number from 1.0-3.0mm. If the diameter is too big, the device will make a  large place change. so that  large deviation will take place with printing defects. If the diameter is too small. these devices will  neglect to recognize them so the device will refuse to load planks or make alarm.

     In conclusion. although it is simple to design Fiducial Marks, some details tend to neglected. If they designed. the corresponding functions Fiducial Signifies should have can not implemented. and even some problems will take place. leading to printing errors and delayed manufacturing. Thus, circuit designers must master the theoretical knowledge on circuit design. and the need of assembly device on PCB production plus they have to. consider all the requirements listed from. all aspects of production collection to boost the manufacturability. manufacturing efficiency and economy of products.
